HONDA CIVIC TYPE R (EP3) FULL RACE SUPERCHARGER CONVERSION (Bottom Mount)
Full Race
This kit sits in the air con pump position (i.e. no aircon).
This kit is suitable for race cars as it requires the removal of the front crash structure and relocation of the battery tray.

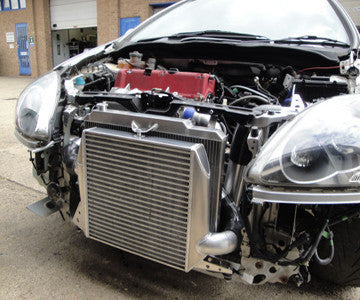

This kit features a new replacement race radiator and a huge front mounted intercooler that is suitable for engines running in excess of 500+bhp.
The Anodized CNC billet brackets offer the most rigid solution and giving perfect belt alignment. The Perfect solution for running the Rotrex C38 supercharger in a race environment.
This conversion essentially includes an additional idler pulley that adds over 50 degrees of additional belt wrap to both the supercharger and crank pulleys. Without this additional wrap belt slip and erratic boost will be an issue with the larger superchargers.
No other conversion offers this solution.
Also in this conversion is our custom built front mounted intercooler and race radiator, all pipework, silicon hoses and clamps, blow off valve, 4 bar map sensor, 1000cc injectors. TTS hi flow fuel pump.
Parts List
- ROTREX C38-81 SUPERCHARGER
- SUPERCHARGER OIL
- ROTREX OIL TANK
- ROTREX OIL FILTER
- ROTREX OIL LINES
- ROTREX OIL COOLER
- SUPERCHARGER PULLEY
- ALLOY MAIN SUPPORT BRACKETS
- TTS AIR FILTER INDUCTION KIT
- ALL ALLOY CONNECTING PIPES
- ALL SILICON HOSES AND CLIPS
- ALL MOUNTING SPACERS, BRACKETS AND FASTENERS
- ID 1000 CC INJECTORS, ADAPTER PLUGS
- FRONT MOUNTED INTERCOOLER
- RACE RADIATOR
- ALLOY PIPES AND SILICON HOSES ETC
- AEROMOTIVE HIGH VOLUME INTANK FUEL PUMP
Performance
- 500+ bhp
