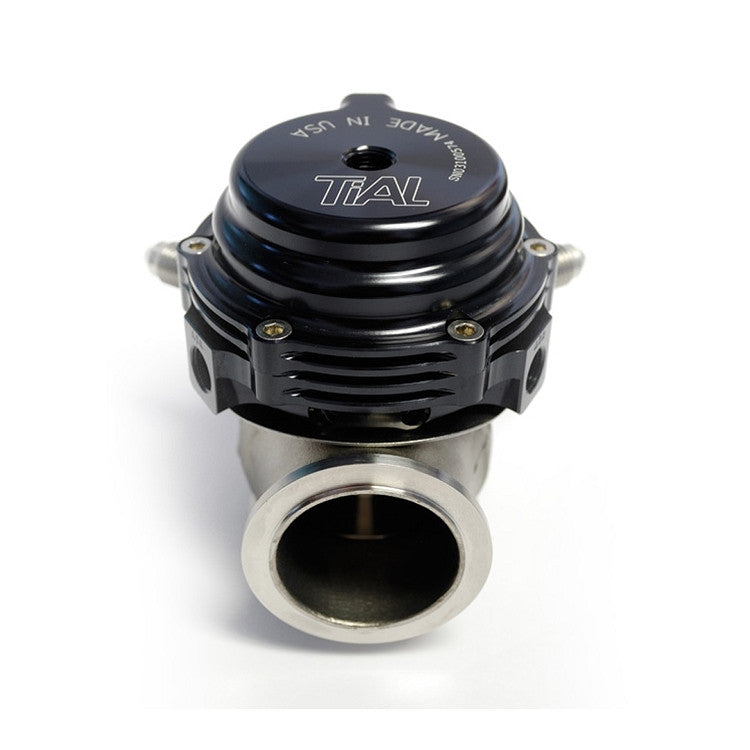

Tial Sport MV-S 38mm External Wastegate
The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy! The MV-S features-
High temperature NiCrFe based alloy is used for valve and 347SS valve housing offer longer product life compared to competing designs
High temperature silicone Nomex reinforced actuator diaphragm
17-7 PH Stainless Steel actuator spring give consistent pressure at high temperature, resisting ‘relaxing’ at temperatures of 483C
Nitronic 60 Stainless Steel is used for the valve seat and bushing
All Stainless Steel hardware
Mating weld flanges are 304L

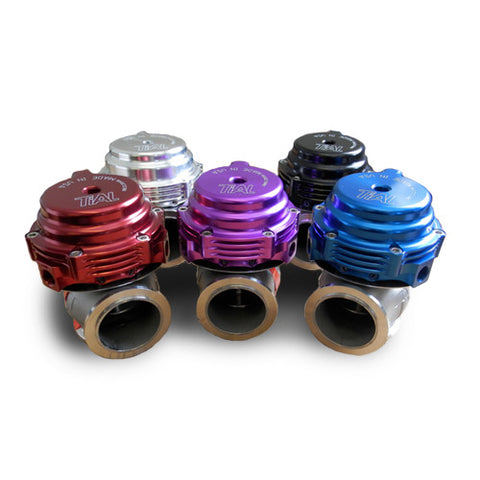

Colour anodized aluminium actuator (silver, red, blue, purple of black)
3 lower ports and two top ports for easy installation, no need to rotate the actuator at all, plugs are included for unused ports
Ultra compact design fits in very tight spaces, the unit stands only 3.7” tall and more compact than any other external wastegate on the market today
V-Band inlet and outlet make installation easy, flanges and clamps are in the box!
Integrated -4 AN water cooling ports that cycle a small amount of coolant through the actuator top to keep down temperatures in extreme conditions. They are leak tested after installation form the factory and can be removed if not utilized
